SA 70 C 2RS

Designation: SA 70 C 2RS
Brand: YLH
Type: Rod End
Material: Stainless steel
Measurement system: Metric
Thread: Male
Thread Direction: Right-Hand
Seal Type: Double-Lip Seals

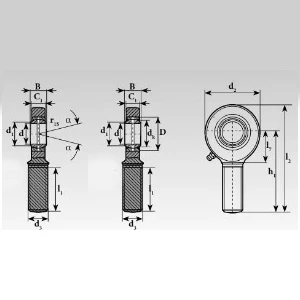

Bore Dia/d: 70 mm
d1: 77.8 mm
Diameter Head/d2: 160 mm
Thread Thickness/d3: M 56×4
Raceway Diameter Inner Ring/dK: 92 mm
Width Inner Ring/B: 49 mm
Width Head/C1: 42 mm
D: 105 mm
Height Shank End Face/h1: 235 mm
Length Threat/l1: 125 mm
Length (Height) Housing/l2: 315 mm
Distance Shank Chamfer – Centre Rod End Eye/l7: 87 mm
Degree: 6°
Distance from edges/r1smin: 1 mm
Dinamyc Ratings load/C: 836 kN
Static Ratings load/C0: 465 kN
RoHS: Compliant
REACH: Compliant
